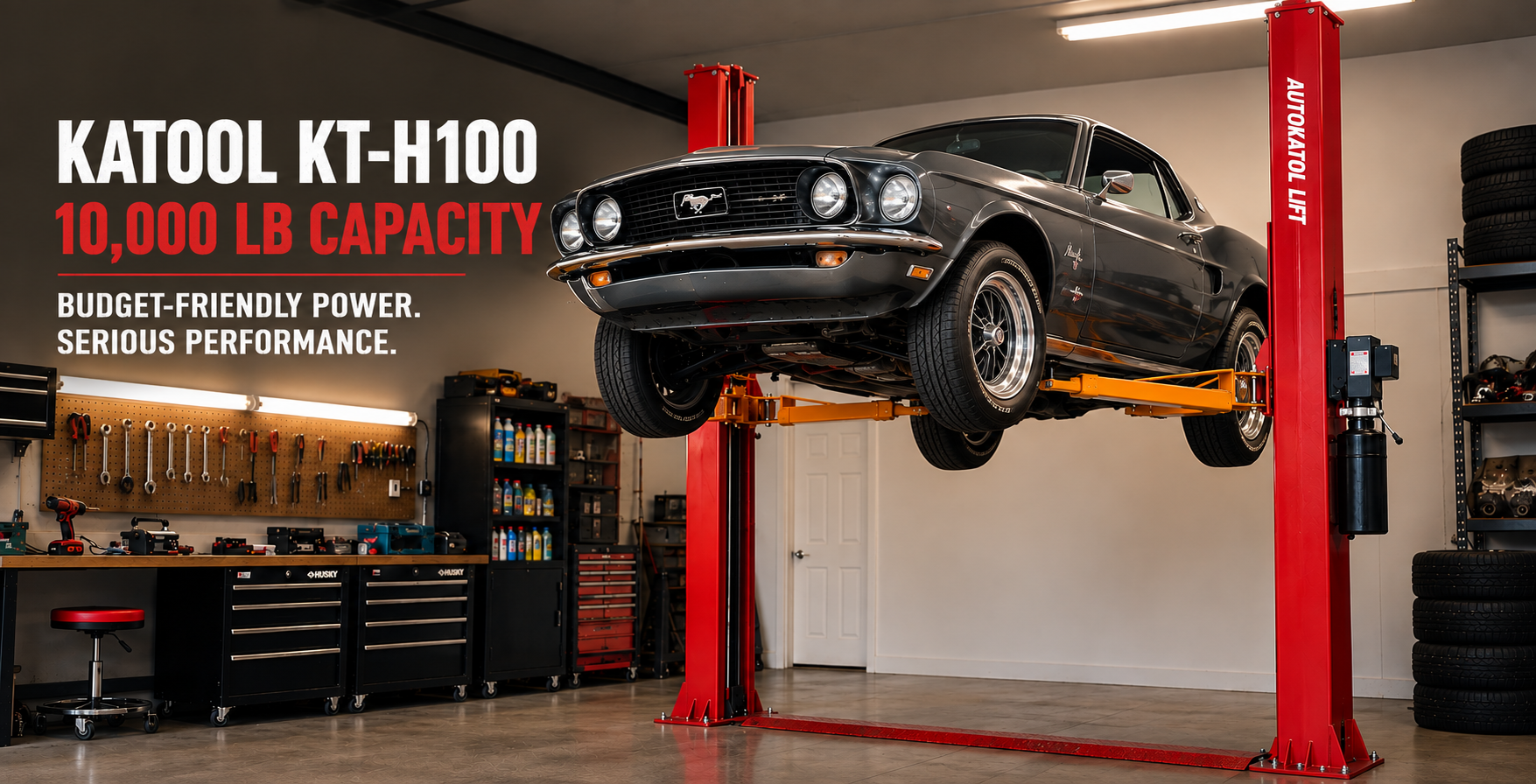

The Best Budget-Friendly 2-Post Lift: Katool KT-H100 (10,000 lbs Capacity)

If you’re outfitting a serious home garage on a budget, finding a reliable 2-post car lift that balances price, safety, and heavy lifting capacity can feel like a challenge. You need serious capacity without overpaying for extra overhead bulk.

The Katool KT-H100 10,000 lbs Floor Plate 2-Post Lift is a sub-$2,000 workhorse designed to handle daily drivers, SUVs, and light trucks with complete stability and easy positioning.

Here is a full breakdown of why the Katool KT-H100 stands out as one of the best value 2-post lifts available at Liberty Garage Supply.

Key Features & Product Specifications

• Lifting Capacity: 10,000 lbs (4,500 kg)

• Overall Post Height: 110.25 inches (9 ft 2 in) – Low-Ceiling Friendly

• Arm Design: Symmetric arm configuration for balanced, easy vehicle setup

• Hydraulic System: Dual hydraulic chain-drive cylinders for smooth, synchronized lifting

• Safety Lock System: Dual-point manual safety lock releases on both columns

• Certifications: CE-certified to demanding load standards

• Price: $1,999.00

What’s Included in the Box?

Every Katool KT-H100 from Liberty Garage Supply includes two sets of height extension adapters (+30 mm and +120 mm), giving you the extra reach needed to lift trucks and frame-on SUVs without damaging side steps or body panels.

Why the Katool KT-H100 Wins on Value

1. Low-Ceiling Garage Friendly

Most 10,000 lb clear-floor lifts require 12 to 14 feet of overhead clearance. The KT-H100 utilizes a floor plate design, keeping its total column height right at 110 inches. This allows you to fit a full-capacity lift into standard home garages or lower-clearance bays.

2. Versatile 10,000 lb Symmetric Power

Whether you are performing quick oil changes, suspension work, or pulling heavy drivetrains, the symmetric arms distribute load weights evenly to maintain total vehicle stability throughout the lift cycle.

3. Factory Warranty Included

Your equipment investment is protected directly out of the box:

• 3-Year Structural Warranty

• 1-Year Parts Warranty

Installation & Concrete Requirements

Before ordering your Katool KT-H100, make sure your shop space meets these manufacturer specifications:

• Concrete Specifications: Minimum 6" thickness with 3,000 PSI concrete strength. (Installing on inadequate concrete can result in severe injury or death; verifying concrete depth prior to installation is essential).

• Ceiling Clearance: At least 110" + the height of the tallest vehicle being lifted.

• Electrical Power: Dedicated 220V, 60Hz, Single Phase (1PH) circuit. (110V configuration is also available).

Safe Operating Guidelines

To maximize the service life of your equipment and protect your shop team:

1. Maintain a Safety Margin: Industry standard guidelines recommend operating at or below 75% of maximum rated capacity during regular daily use to minimize stress on lifting cables and hydraulic components.

2. Center Your Weight: Always position vehicles carefully to ensure balanced, even weight distribution across all four pad points.

3. Routine Inspections: Inspect lifting cables, safety locks, and hydraulic lines regularly to catch wear early.

Order Yours Today at Liberty Garage Supply

At Liberty Garage Supply, we make getting commercial-grade equipment straightforward and hassle-free. If you're interested in the Katool KT-H100 click here.

• Questions? Call or text our support line directly at (813) 902-2702 or email support@libertygaragesupply.com.

• Freight Shipping: All automotive lifts are heavy-freight items shipped via commercial semi-truck. Please note that a forklift or similar unloading equipment is required at delivery.
