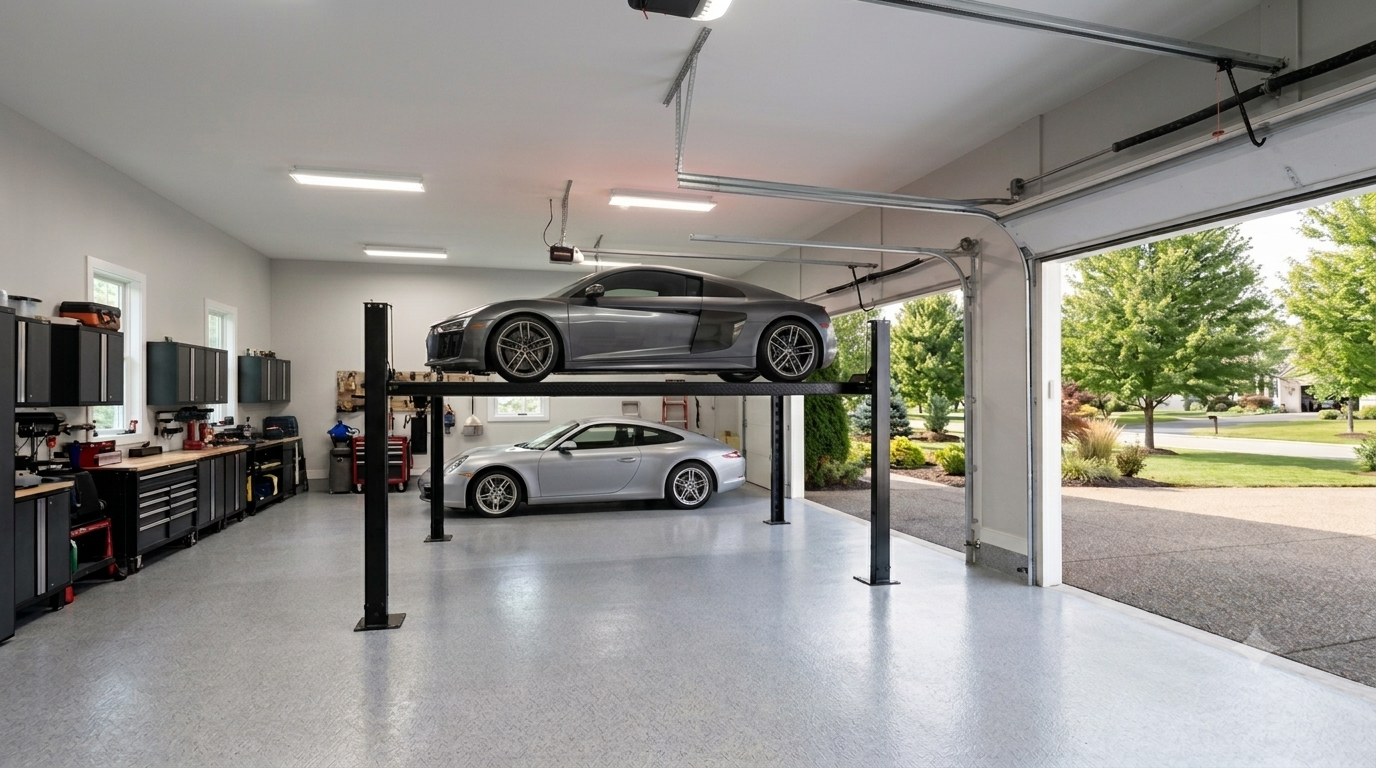

Will a 4-Post Lift Fit in My Garage?

Buying a 4-post car lift is the ultimate way to double your parking space or finally work on your vehicles without crawling around on a cold concrete floor. But before you invest thousands of dollars in heavy-duty automotive equipment, you must answer the golden question: Will it fit?

The most common mistake buyers make is assuming a standard garage ceiling is high enough just because it looks spacious from the ground. If you guess wrong, you end up with a 1,500-pound block of industrial steel sitting in your driveway that you cannot safely operate.

Calculating your required garage space isn't difficult, but it does require precise math. Below is the exact structural formula to determine if a 4-post lift will fit in your garage, along with the hidden clearance roadblocks most people completely forget to measure.

The Ceiling Height Formula

To determine the absolute minimum ceiling height required to stack two vehicles, you cannot just look at the static height of the lift itself. You have to account for both vehicles, the physical thickness of the lift runways, and the mechanical safety locks.

Vehicle 1 Height + Vehicle 2 Height + Runway Thickness (typically 4.5”-5”) + Lock Clearance Buffer ( 6” ) = Minimum Ceiling Height

Why the "Lock Clearance Buffer" Matters

When you raise a 4-post lift, you have to lift the vehicle past the safety lock stop and then manually lower it down onto the heavy-duty mechanical locks. This means you need a minimum of 6 inches of extra overhead clearance above your top vehicle just to operate the lift handle safely. If your ceiling is exactly the height of the two cars combined, you will never be able to securely lock the lift into place.

Real-World Clearance Examples

The Hidden Obstacles: Garage Doors and Openers

Even if your bare ceiling meets the raw height requirement, two massive horizontal obstructions frequently get in the way of a car lift: your garage door tracks and your opener unit.

The Traditional Garage Door Opener

A standard garage door opens and curves horizontally into the room at a height of about 7 or 8 feet. If you raise a vehicle on a lift with a standard track setup, the front bumper of the top vehicle will smash directly into the garage door or the metal tracks.

The Solution

You need a High-Lift Track Kit. This modifies your garage door tracks so the door travels straight up against the wall as high as possible before curving back, maximizing your usable vertical window.

The Traditional Center-Mount Opener

If you have a traditional garage door opener mounted right in the center of your ceiling, it hangs down anywhere from 10 to 18 inches. It sits exactly where the roof of your top vehicle needs to go.

The Solution

Switch to a Wall-Mount (Jackshaft) Opener. These sleek units mount directly to the side of your garage door's torsion bar on the wall, completely clearing your ceiling of hardware structural obstructions.

Floor Space & Concrete Requirements

While ceiling height is the primary physical constraint, you also need to ensure your garage floor can physically accommodate the footprint and support the load of a 4-post lift.

Width and Length Footprints

A standard 4-post lift typically requires an overall width of 90 to 115 inches and an overall length of 170 to 200 inches (including the drive-on ramps). Always ensure you leave at least 2 feet of walking clearance around the perimeter of the lift columns so you can safely access the hydraulic control unit and comfortably navigate your garage layout.

Concrete Thickness and PSI

One major structural advantage of a 4-post lift over a 2-post lift is how it distributes heavy weight. Because the vehicle mass is spread across four distinct vertical posts, it puts far less concentrated stress on your concrete slab.

• The Standard: Most residential 4-post lifts (up to 9,000 lbs lifting capacity) only require a minimum of 3 inches of 3,000 PSI concrete.
• Unlike a 2-post lift—which absolutely must be deeply anchored into the slab to prevent tipping—many 4-post lifts can be used unanchored and paired with optional caster kits to roll the empty lift around your shop floor freely.

Next Steps: Measure Twice, Buy Once

Before you place your order, grab a laser measure or tape measure. Determine the lowest hanging obstruction on your ceiling. If you have the vertical clearance, a 4-post lift is the single best way to optimize your garage into a multi-car oasis.

Frequently Asked Questions (FAQs)

Can I install a 4-post lift on an uneven garage floor?

It is highly recommended to install your lift on a level concrete surface. No more than 2 degrees of slope. While minor imperfections are common, a significant slope can compromise the stability of the mechanical safety locks and put uneven stress on the columns.

Do I absolutely need to bolt a 4-post lift to the floor?

No, unlike 2-post lifts, many residential 4-post lifts do not require anchoring. Many manufacturers offer caster kits that allow you to roll the empty lift around your garage when needed.
