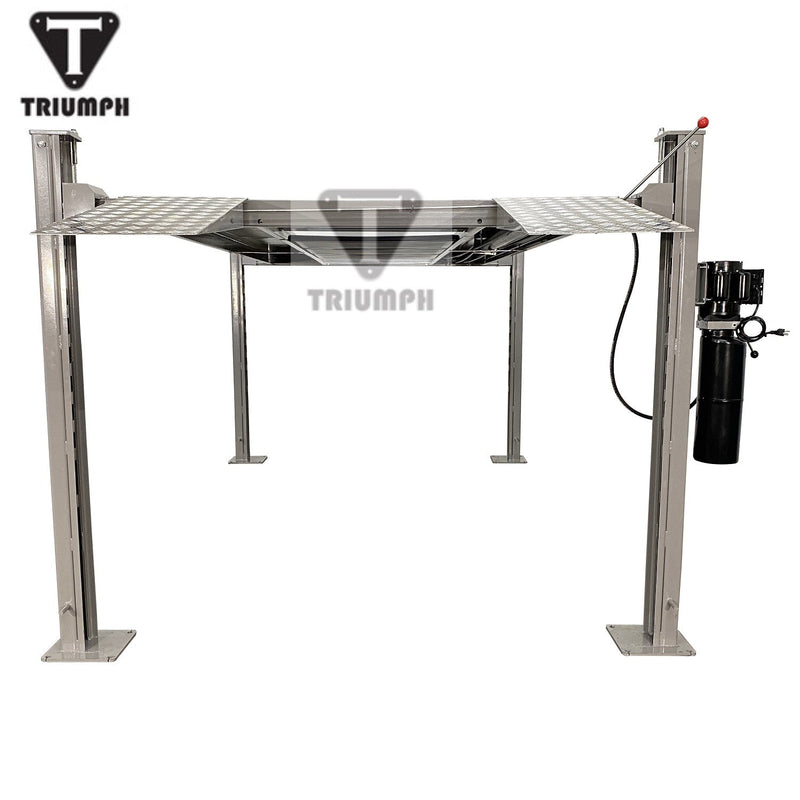

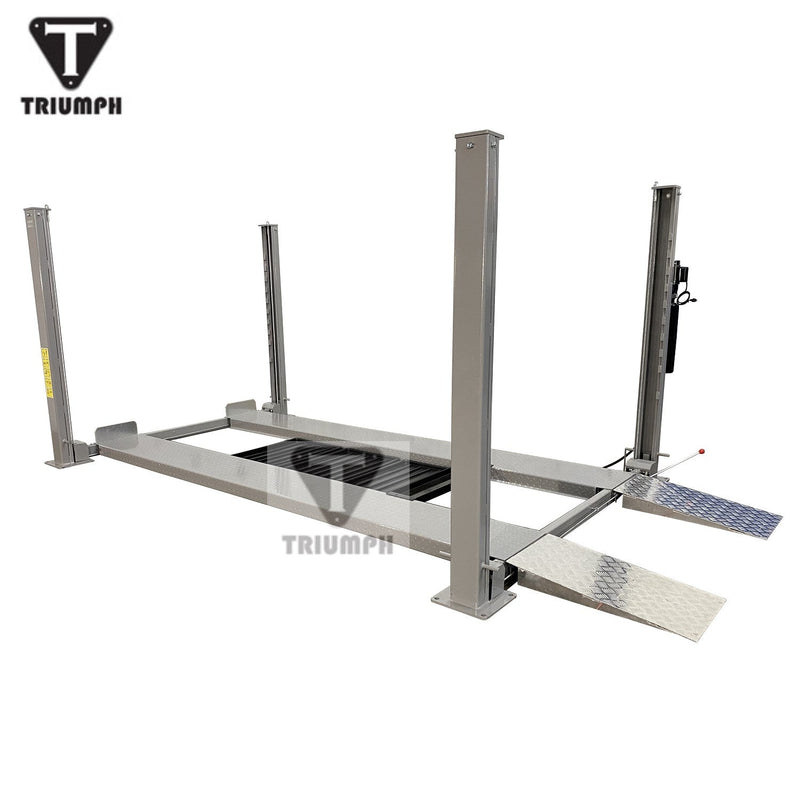

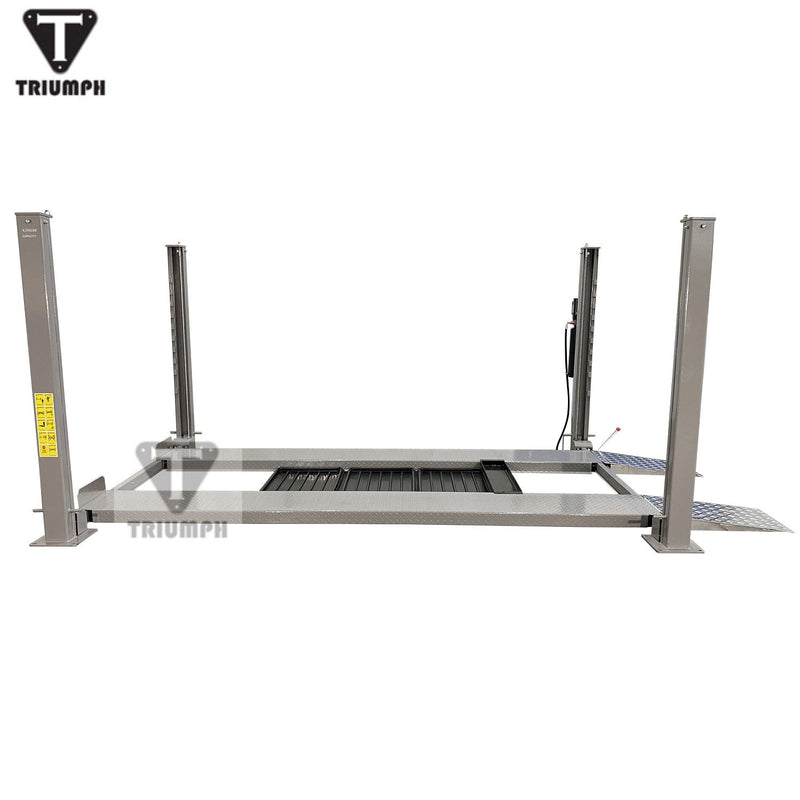

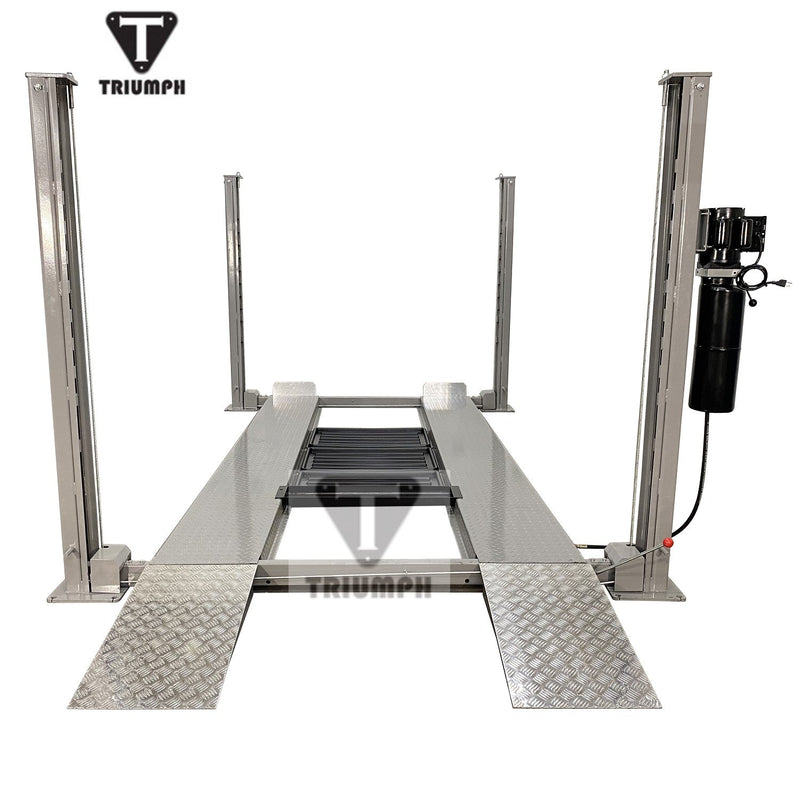

Triumph NSS8 Classic 8000LBS 4-Post Lift

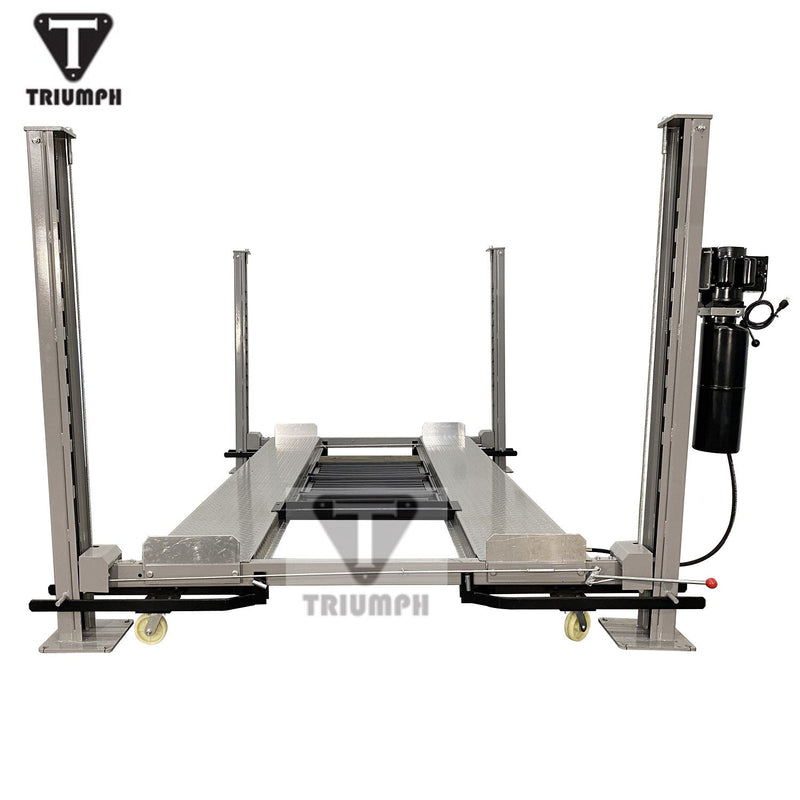

The NSS8 Classic Lift is a versatile solution for both vehicle storage and service. Its portable design includes a caster kit for easy movement around the garage, while the included jack tray makes it simple to lift one end of a vehicle for maintenance. Three drip trays help protect the vehicle stored underneath from fluid drips. With a time-tested design, automatic locking at 10 positions, and easy setup, the Classic Lift is an excellent choice for maximizing garage storage space.

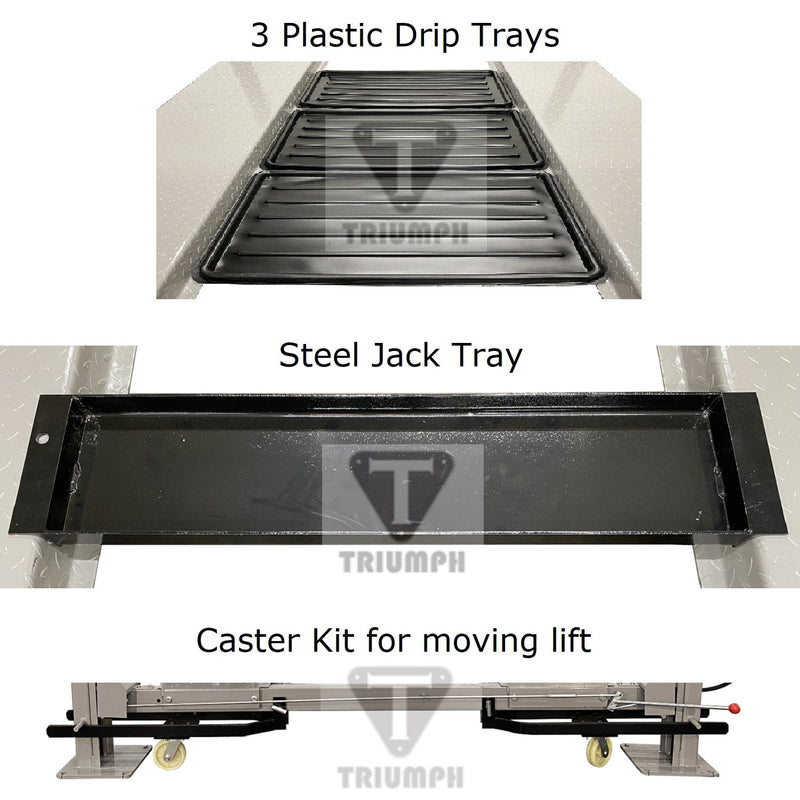

Includes:

• Caster Kit
• Jack Tray
• Drip Trays

Installation Requirements:

• Concrete Specifications: (Anchoring not required) Minimum 4" thickness and 3,000 PSI strength.

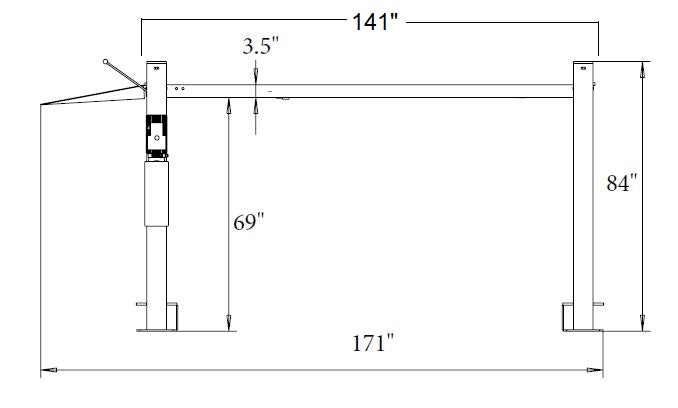

• Ceiling Clearance: Vehicle A Height + Vehicle B Height + 3" Runway Height + 4" Locking Buffer.

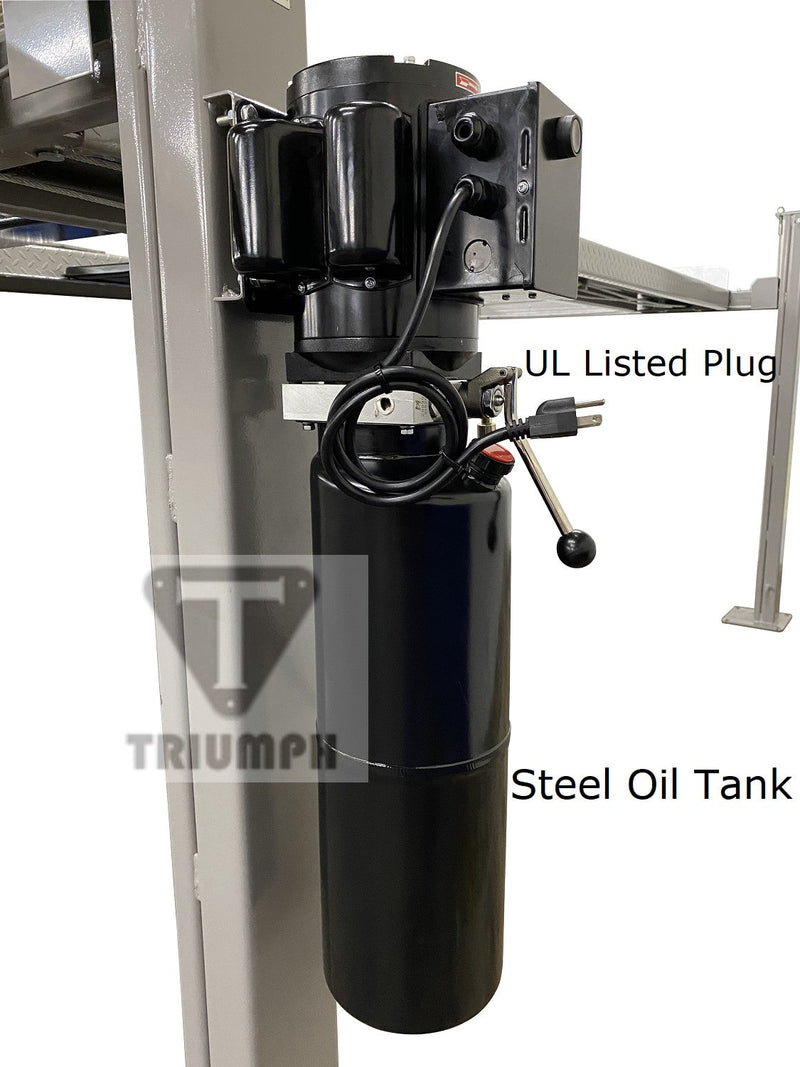

• Electrical Power: Dedicated 110V, 60 Hz, Single Phase (1PH) circuit. (220V, 60HZ, Single Phase (1PH) configuration available).

Important: Installing on inadequate concrete can result in severe injury or death. Verification of concrete specifications prior to purchase and installation is the customer's responsibility.

Safety Note: To ensure maximum shop safety, always select a lift rated above your vehicle's actual weight, factoring in aftermarket additions, heavy tools, or cargo. Industry standards recommend operating at or below 75% of the lift's maximum rated capacity during regular daily use.

Essential Safety Guidelines

• Respect Weight Limits: Always stay within both total lifting capacity and individual per-arm load limits.

• Center the Load: Position vehicles carefully to maintain balanced, even weight distribution across all lifting points.

• Follow Routine Maintenance: Perform regular inspections according to manufacturer guidelines to catch wear early and protect your investment.

Following these simple operating practices keeps your team safe, minimizes shop downtime, and maximizes the service life of your equipment.
