Katool KT-M110 11,000LBS 2-Post Lift

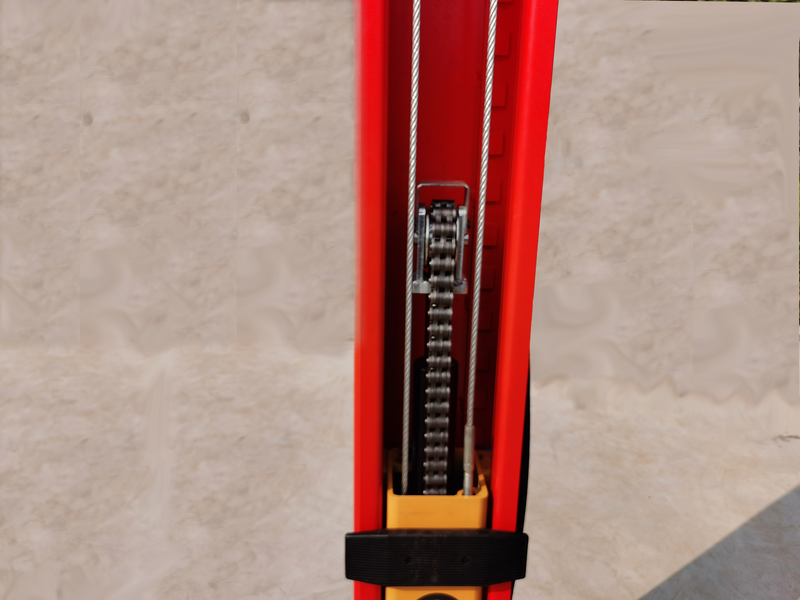

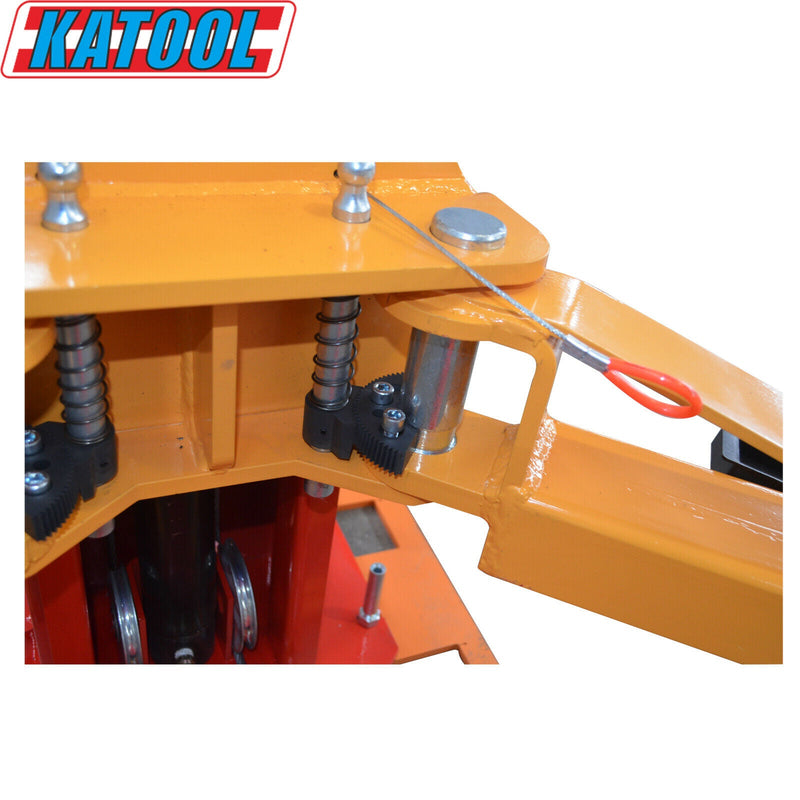

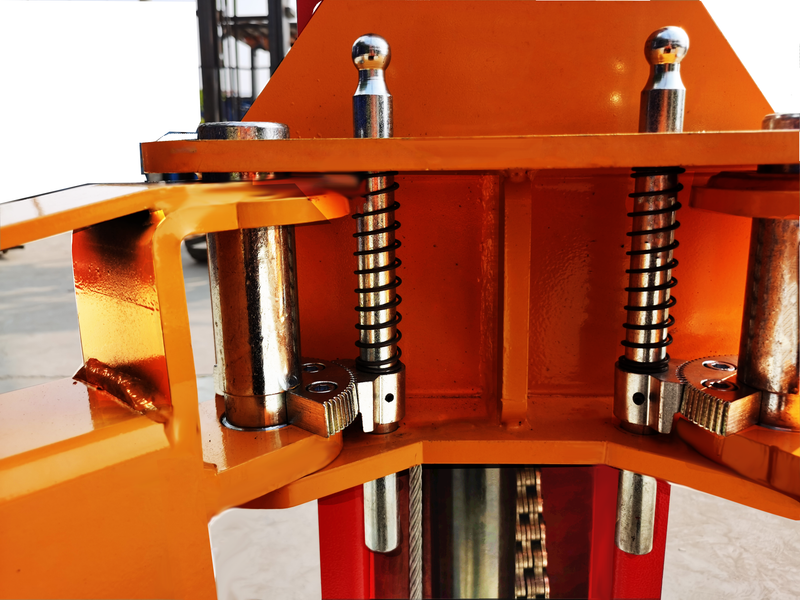

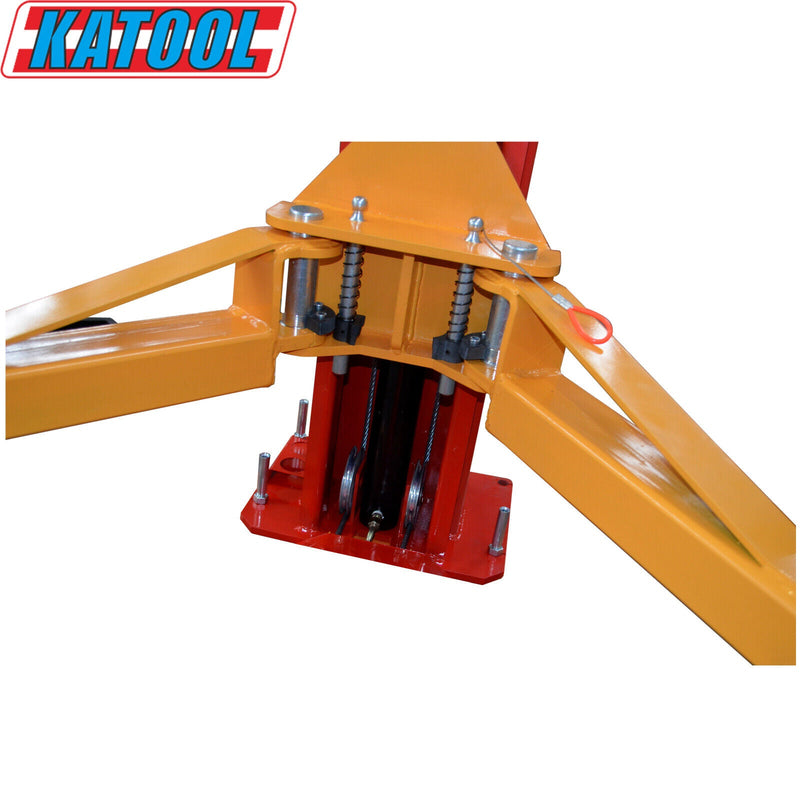

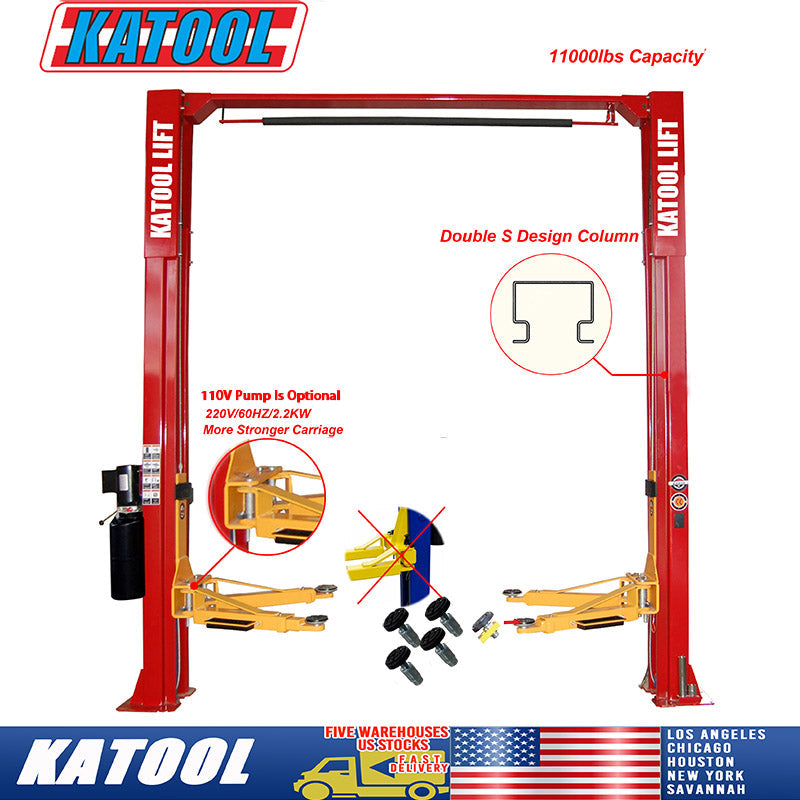

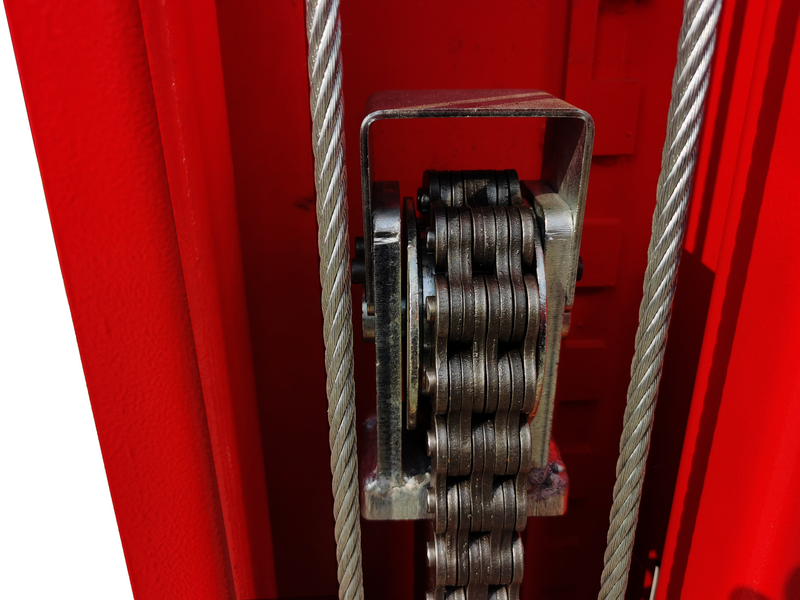

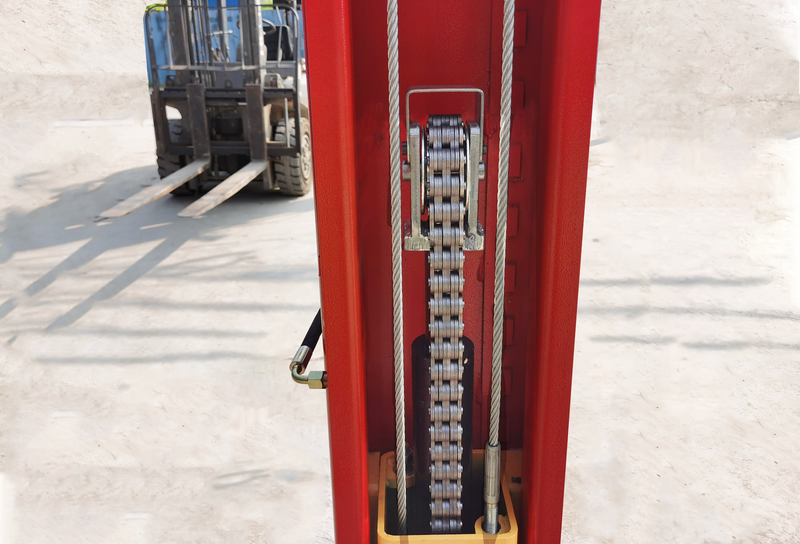

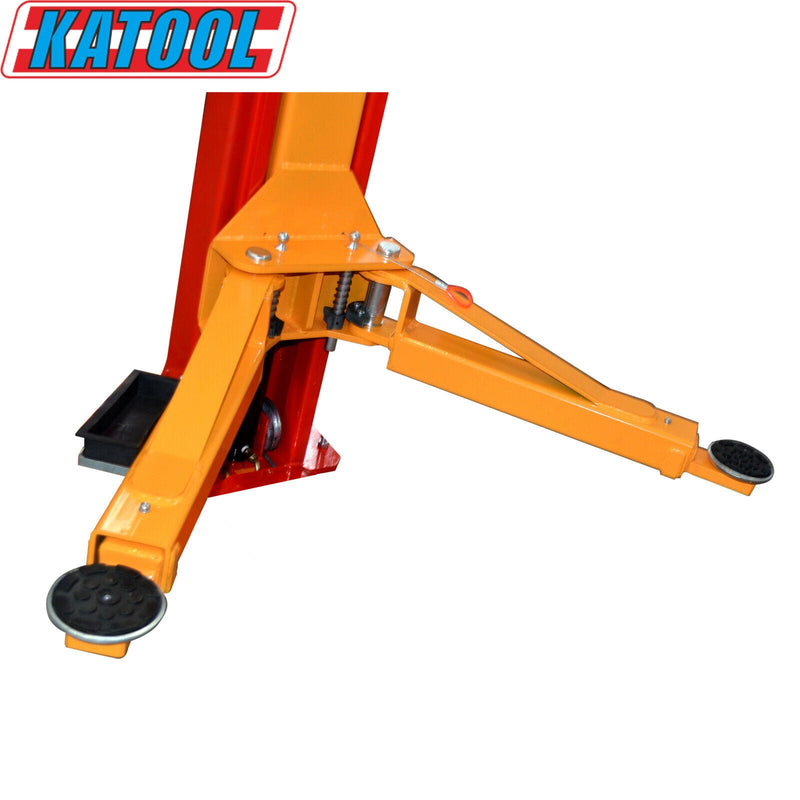

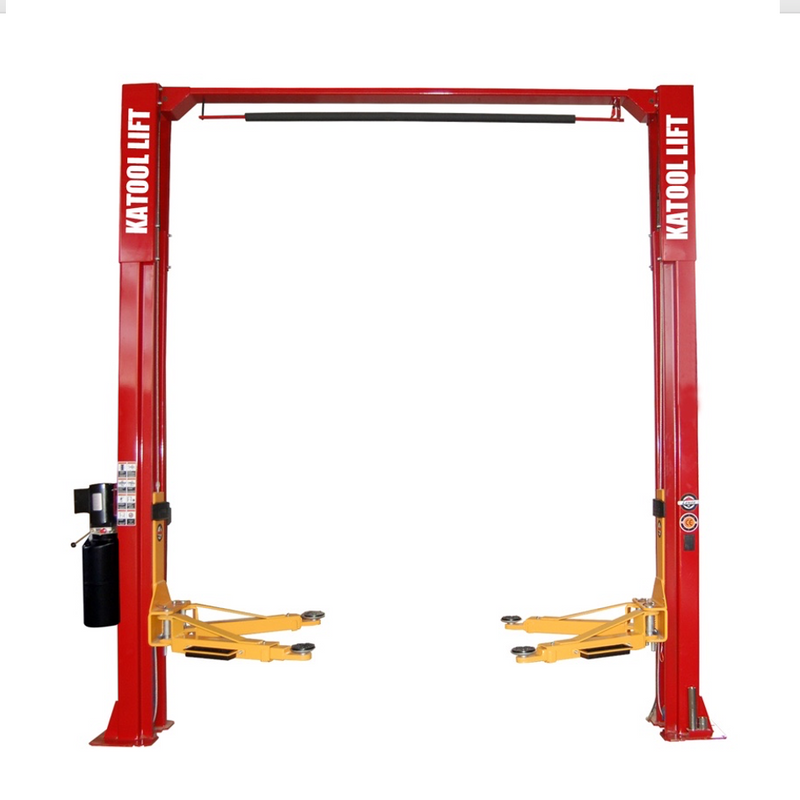

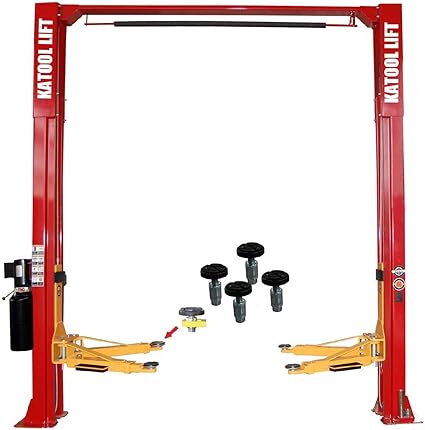

The Katool KT-M110 Clear-Floor Two-Post Lift delivers heavy-duty lifting power with completely unobstructed floor access. Featuring a massive 11,000 lb capacity, dual hydraulic chain-drive cylinders, and 2-stage arms, this lift easily raises cars, SUVs, vans, and light trucks for effortless under-vehicle service.

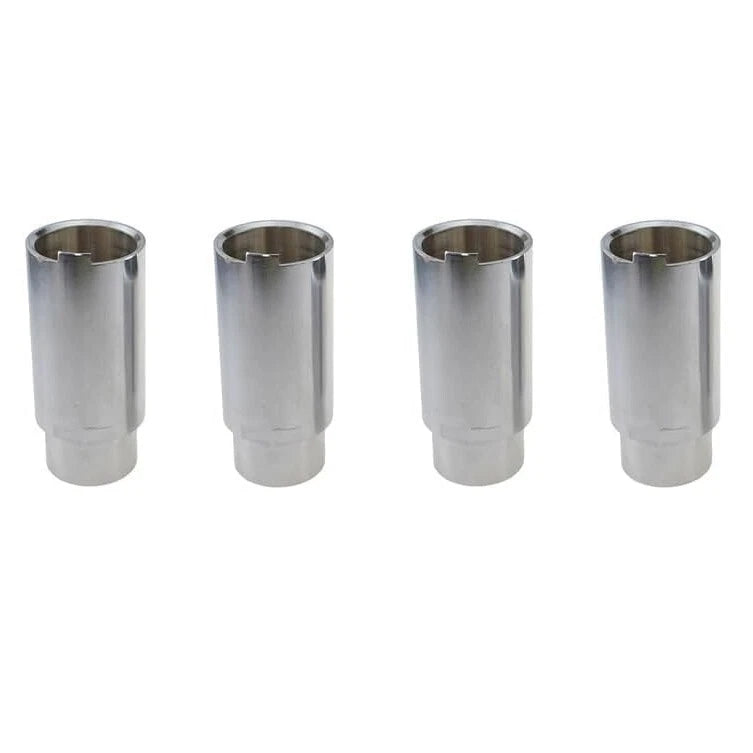

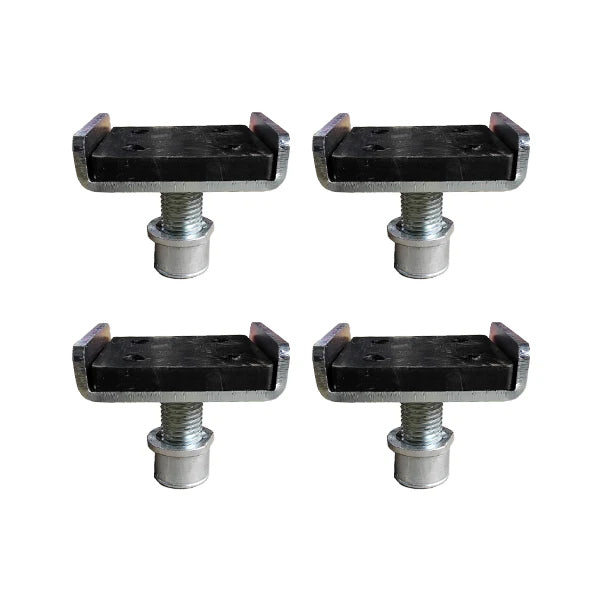

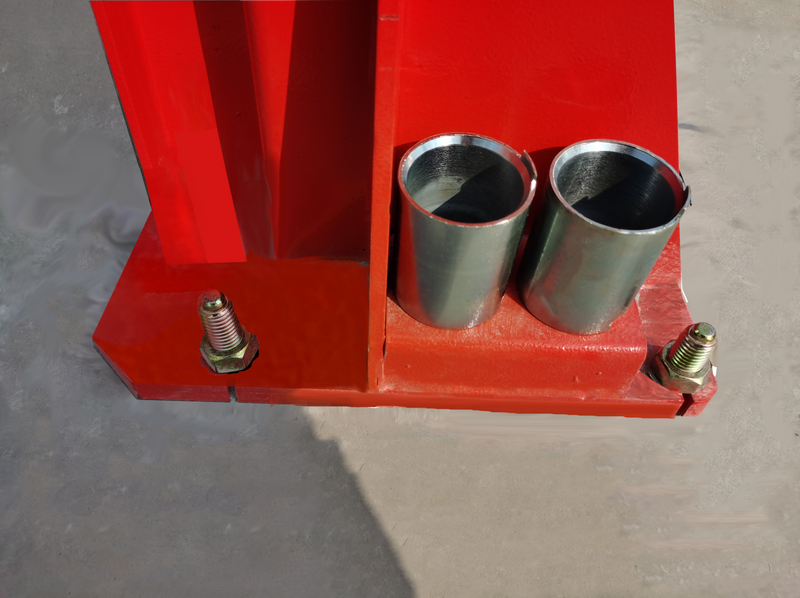

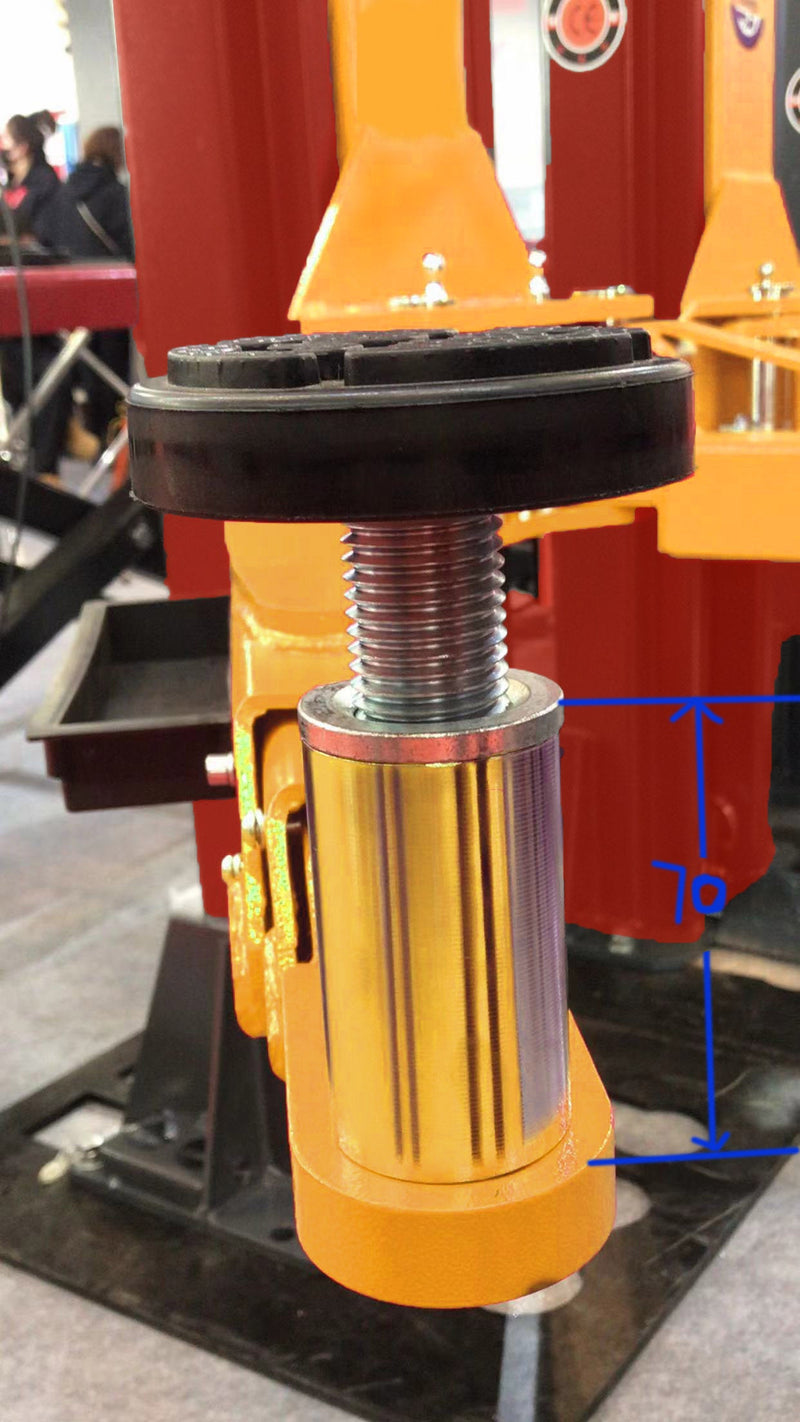

Built with safety at its core, the KT-M110 is CE-certified (tested to 150% static capacity) and equipped with an overhead safety shutoff bar, dual-side manual safety lock releases, and rubber door guards. Complete with height adapters and integrated foot guards, it's the ultimate solution for turning any garage into a high-efficiency service bay. View the Owner's Manual here

Installation Requirements:

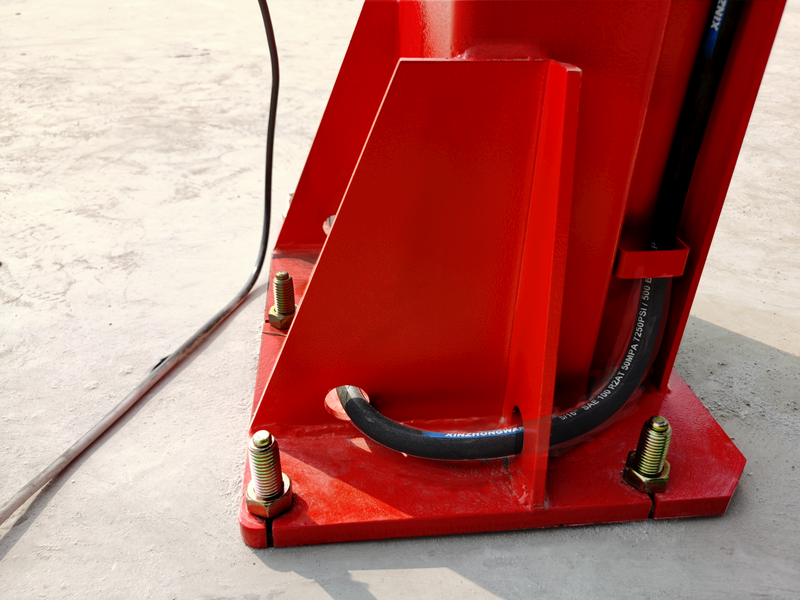

• Concrete Specifications: Minimum 6" thickness and 3,000 PSI strength.

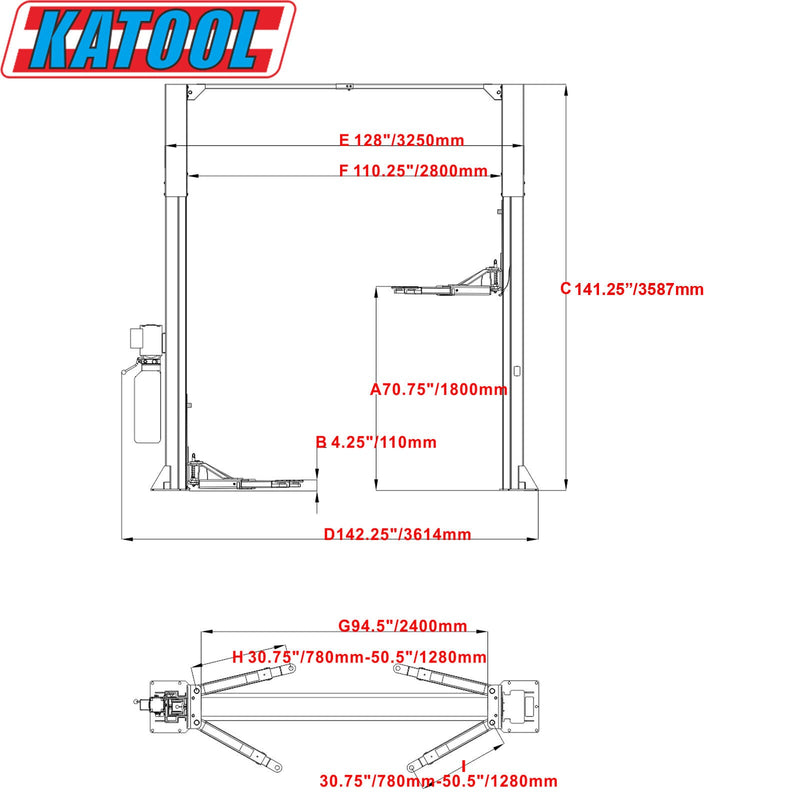

• Ceiling Clearance: At least, 141.25".
• Electrical Power: Dedicated 220V, 60HZ, Single Phase (1PH) circuit. (110V, 60 Hz, Single Phase (1PH) configuration available).

Important: Installing on inadequate concrete can result in severe injury or death. Verification of concrete specifications prior to purchase and installation is the customer's responsibility.

Essential Safety Guidelines

• Respect Weight Limits: Always stay within both total lifting capacity and individual per-arm load limits.

• Center the Load: Position vehicles carefully to maintain balanced, even weight distribution across all lifting points.

• Follow Routine Maintenance: Perform regular inspections according to manufacturer guidelines to catch wear early and protect your investment.

Following these simple operating practices keeps your team safe, minimizes shop downtime, and maximizes the service life of your equipment.
